Additional Equipment — Rotary Joint Features:
・Liquid supply to the rotating objects is easy even in a high pressure or a high speed
・The mental-seal construction at the rotation portion assures superb durability
・Rotation toque is stable in variable supply pressures

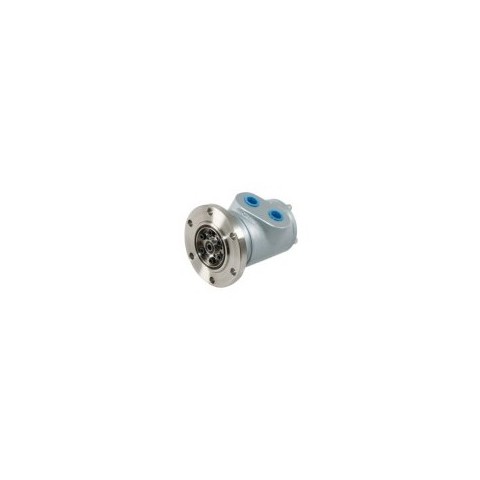

Rotary Joints RJ Series
Liquid supply to the rotating objects is easy even in a high pressure or a high speed
Liquid supply to the rotating objects is easy even in a high pressure or a high speed
| Model No | Port size | Fluid |
Rated pressure MPa (kgf/cm²) |
Max. revolution (rpm) |
Pass diam. (mm) |
Numbers of pass |
| RJC-062L | Rc1/4 | Hydraulic | 3(30) | 3000 | φ 6 | 2 |
| Air | 1(10) | |||||
| RJH-062M | Hydraulic | 14(140) |
