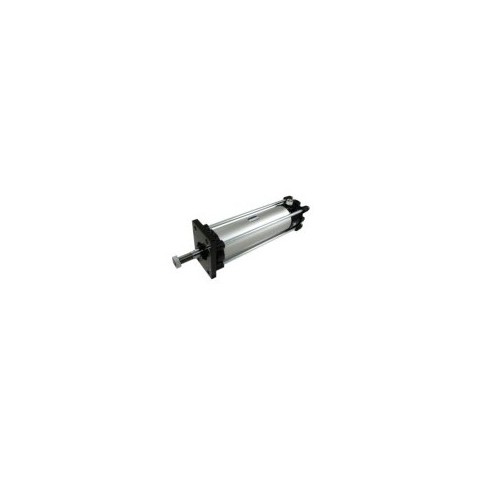

Cylinder With Brake Mechanism KGSP Series

High-precision orientation of brake cylinder arbitrary by air pressure

Series	Acting	Bore size (mm)	Standard stroke (mm)	Service life	Pressure range MPa(kgf/cm²)
KGSP2	Double acting	φ 40	50,75,100 150,200, 250,300	>500 million times	0.05~1 (0.5~10)
		φ 50
		φ 63
		φ 80
		φ 100

● Mounting/ Nose, Foot, Flange, Male clevis, Female clevis and Center trunion mounting
● Switch/ M type switch (reed type, proximity type) mountable
● Cushion/ Both sides air cushion
