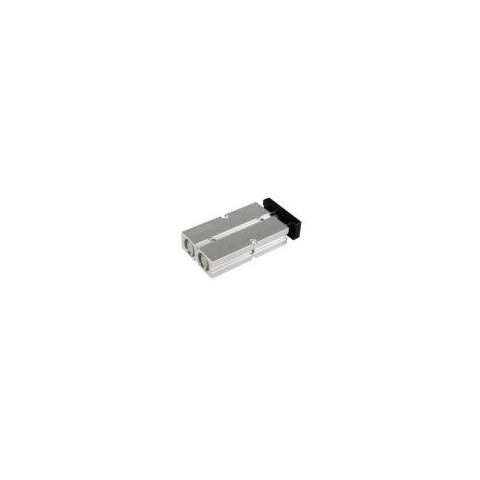

Guide Cylinder — Dual Rod Cylinder
Dual Rod Cylinder FCN Series
.
.
| Bore size (mm) | 10 | 16 | 20 | 25 | 32 | |
| Action | Double action | |||||
| Working media | air | |||||
| Operation pressure | 0.1～1.0MPa（14～145Psi） | |||||
| Withstanding pressure | 1.5MPa（215Psi） | |||||
| Ambient temperature 0C | -20～70 | |||||
| Speed range | 30～500 | |||||
| Stroke | -10～0 | |||||
| Tolerance range |
+1.0 0 |
|||||
| Buffer type | buffer | |||||
| Non-rotating accuracy | ±0.4° | ±0.3° | ||||
| Port size | M5×0.8 | PT1/8 | ||||
