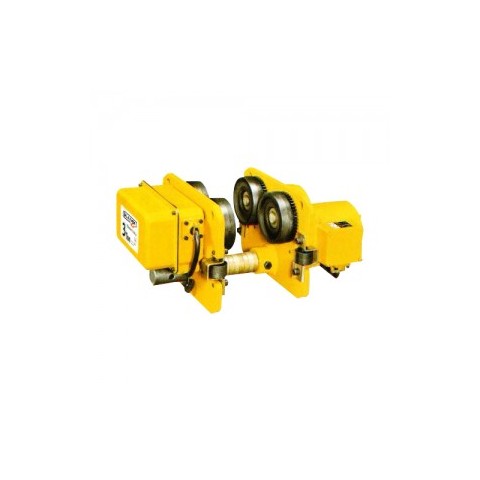

Model: TE
Capacity: 0.5-10 Ton
Specially recommended for loads over 500kg, for transporting over long distances and / or when used frequently. Suitable for almost all hoists with coupling rings.
Features
Compact, robust frame with low overall height.
Motors protected with IP 54 against dust and spray water.
Wheels manufactured from fracture-proof steel.
Smooth running due to machined surfaces and ball bearing mounting. Cambered profile suitable for parallel and inclined beam profiles.
Anti-tilt and anti-drop devices as standard.
Easy adjusted to fit to a wide range of beam widths and profiles due to threaded spindles.
Dual speed mode, and double axle type trolley are available, contact with us for details if request.
Technical.Size Specification
| Size Dimension(mm) | Size Dimension(mm) | Size Dimension(mm) | Size Dimension(mm) | |||||||
| Model | Capacity (t) | Travel Speed (m/min) | Motor Power (Kw) | Beam Flange Width (mm) | W | U | R | T | Min. Radius Curve (m) | Net Weight (Kg) |
| TE005 | 0.5 | 11 or 21 | 0.4 | 75-125 | 315 | 212 | 142 | 231 | 0.8 | 41 |
| TE010 | 1 | 11 or 21 | 0.4 | 75-178 | 315 | 212 | 142 | 231 | 0.8 | 42 |
| TE020 | 2 | 11 or 21 | 0.4 | 82-178 | 325 | 220 | 142 | 231 | 0.9 | 49 |
| TE030 | 3 | 11 or 21 | 0.75 | 100-178 | 340 | 250 | 142 | 231 | 1.0 | 61 |
| TE050 | 5 | 11 or 21 | 0.75 | 112-178 | 430 | 306 | 142 | 231 | 1.5 | 83 |
| TE075 | 7.5 | 11 or 21 | 0.75 | 150-220 | 430 | 306 | 142 | 231 | 1.8 | 89 |
| TE100 | 10 | 11 or 21 | 0.75 | 150-220 | 500 | 371 | 142 | 231 | 2.5 | 140 |
