Model: GB, Capacity: 500-10000kg

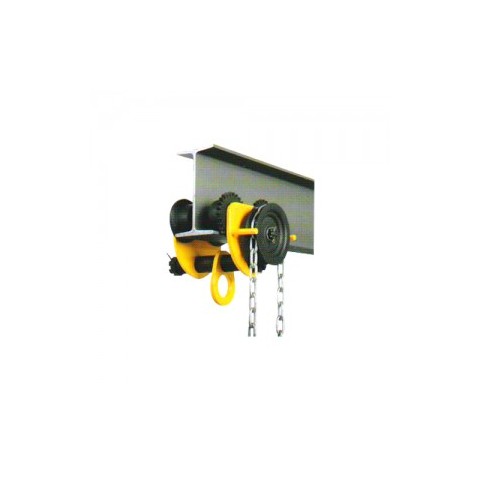

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Features
Extremely easy work-site installation
Compatible with I beam and H beam rails.
High quality sealed ball bearings.
Light selfweight and compact.
Easily travel over minor rail surface irregularities.
For geared trolley, the standard opertion chain length is 3 meter, other length is available upon request.
Technical Parameters
| Size Dimension (mm) | Size Dimension (mm) | Size Dimension (mm) | Size Dimension (mm) | Size Dimension (mm) | |||||
| Item Code | Capacity (Kg) | Model | Beam Flange Width F | A | B | C | H | F | Net Weight (Kg) |
| 210005 | 500 | GB005 | 50-125 | 206 | 174 | 180 | 118 |
2 | 8 |
| 210010 | 1000 | GB010 | 75-125 | 271 | 206 | 222 | 120 | 3 | 15 |
| 210020 | 2000 | GB020 | 100-150 | 308 | 240 | 267 | 132 | 3 | 18 |
| 210030 | 3000 | GB030 | 100-150 | 342 | 279 | 319 | 181 | 3 | 35 |
| 210050 | 5000 | GB050 | 125-175 | 384 | 318 | 384 | 219 | 3 | 54 |
| 210100 | 10000 | GB100 | 150-175 | 410 | 721 | 450 | 220 | 3 | 100 |
