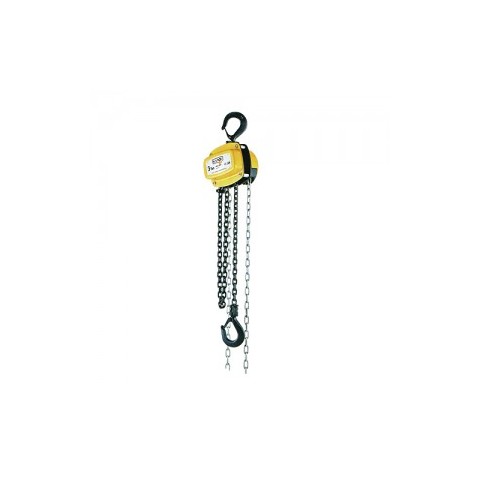

Manual Chain Hoist
Model: YH360, Capacity 1000-3000kg
Areas of operation as well as operator conditions have been improved in trail-blazing fashion, which goes far beyond the classical hand chain hoist.
Features
-
The revolutionary 360 degree rotating hand chain guide allows the operator to work from virtually any position, in confined spaces or above the load. YH 360 can even be operated from the side of the load which also makes it possible to use the hoist for horizontal pulling or tensioning. Due to the additional flexibility, the operator is no longer forced to work in the danger zone near the load.
-
The enclosed robust stamped steel housing protects all internal components even in the toughest conditions.
-
Chain guide and gearbox are almost totally enclosed. Even under the toughest conditions the internal gearbox remains protected.
-
The hardened lad sheave with four precision machined pockets ensures accurate movement of the load chain.
-
Drop forged load and suspension hooks that yield under overload instead of breaking, are made of high tensile steel. The hooks are fitted with robust safety latches and rotate 360 degree.
Technical Parameters
|
Model
|
Item Code
|
Capacit(kg)
|
No. of Chain
|
Chain Size (mm)
|
Pull on Hand Chain at WLLN
|
Net Weight at Standard 3m lift (kg)
|
|
YH010
|
201010
|
1000
|
1
|
6x18
|
240
|
13.9
|
|
YH020
|
201020
|
2000
|
1
|
8x24
|
329
|
21.6
|
|
YH030
|
201030
|
3000
|
1
|
10x30
|
410
|
30.6
|
Size Specification (mm)
|
Model
|
Item Code
|
Hmin
|
B
|
C
|
D
|
E
|
F
|
|
YH010
|
201010
|
355.6
|
22.2
|
28.6
|
14.3
|
176
|
155.6
|
|
YH020
|
201020
|
395
|
30
|
35
|
20.6
|
203
|
182.5
|
|
YH030
|
201030
|
520
|
38
|
39.7
|
25.4
|
224
|
220
|
