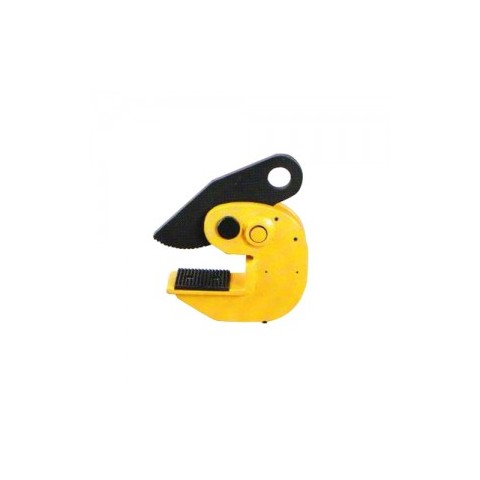

Horizontal Lifting Clamp

Item Code: 302###, Capacity: 800-10000kg

Features

• Suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position.
• Manufactured from high quality carbon steel
• Avoid snatch or shock loading.
• The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60 degree. In lifting operations the clamps can be used in pairs or multiples.
• The screw jaw of the body can be changed, also have a safety button.

Technical Parameters

			Dimensions(mm)	Dimensions(mm)	Dimensions(mm)	Dimensions(mm)	Dimensions(mm)
Item Code	Capacity (pair/kg)	Jaw Opening (mm)	A	B	C	D	E	Weight (kg)
302008	800	0-25	25	120	55	185	22	2.5
302010	1000	0-30	30	155	60	215	25	3.5
302016	1600	0-30	30	155	60	215	25	4
302020	2000	0-40	40	175	65	245	25	5
302030	3000	0-45	45	190	70	250	27	6
302040	4000	0-50	50	190	70	255	27	6.5
302050	5000	0-55	55	190	70	260	28	7.5
302060	6000	0-65	65	200	70	275	28	10.5
302080	8000	0-130	130	320	90	380	40	22
302100	10000	0-140	140	320	90	390	40	33

Examples of Use

! Always lift work pieces at 2 or more points for safety.
