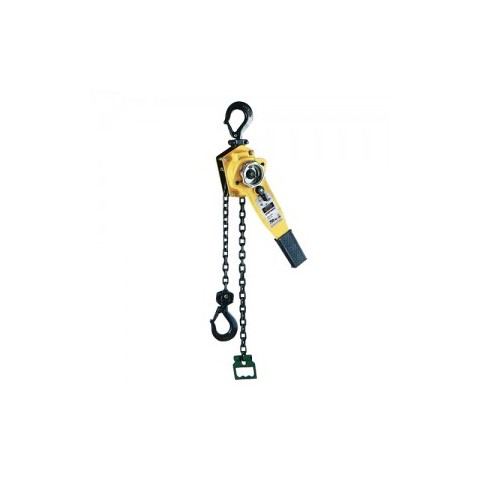

Rachet Lever Hoist
Model: LY, Capacity: 500-6000 kg
Features
-
Forged suspension and load hooks, manufactured from non-aging, high alloy tempering steel, yield under overload instead of breaking.
-
The chain guide is integrated into the housing to eliminate fouling and jamming of the chain on the load sheave.
-
Robust chain stop.
-
The standard free chaining device serves to quickly attach the load.
-
Ergonomic handlever with rubber grip.
-
Hard chromium plated hand wheel.
-
Automatic screw-and-disc type load brake with corrosion protected components.
-
Sturdy bottom block with encapsulated bolt connections.
-
Due to optimized gearing a minimum effort is required to operate the short hand lever.
Technical Parameters
|
Item Code
|
Capacity (Kg)
|
Model
|
No. of Chain
|
Test Load (Ton)
|
Chain Size (mm)
|
Pull on hand Chain at WLL (N)
|
Net Weight at Standard 3m Lift (Kg)
|
|
204050
|
500
|
LY050
|
1
|
750
|
5x15
|
98
|
5.9
|
|
204075
|
750
|
LY075
|
1
|
1125
|
6x18
|
137
|
6.6
|
|
204100
|
1000
|
LY100
|
1
|
1500
|
6x18
|
157
|
6.6
|
|
204150
|
1500
|
LY150
|
1
|
2250
|
8x24
|
216
|
10.8
|
|
204200
|
2000
|
LY200
|
1
|
3000
|
8x24
|
255
|
11.1
|
|
204300
|
3000
|
LY300
|
1
|
4500
|
10x30
|
314
|
18.2
|
|
204600
|
6000
|
LY600
|
2
|
9000
|
10x30
|
333
|
28.1
|
