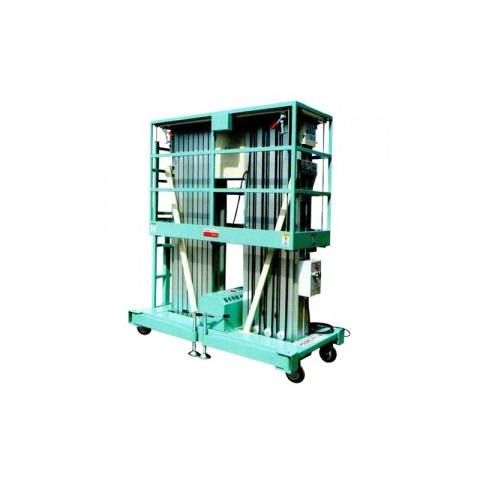

Max height of platform: 6m, 8m, 9m, 10m, 12m for option
Features: Two passengers allowable, small footprint, less weight, easily moved, able to access to limited passageway. The most ideal equipment for aerial work to replace ladder or rigger, with high efficiency and more security.
Standard Configuration
Power supply: single phase AC ( AC 220V );
Move mode: manual; ( default )
Driving unit: one unit hydraulic pump, small volume and less noise.
Others:
Hand shank enables easy steering
Leveling of platform is guaranteed by adjusting outrigger with screws
Electric limit switch shall cut off power when up limit is reached.
Ground / platform control modes are available, rendering possibility of one operator.
Stroke protection block is build in hydraulic cylinder for security.
Emergency lowering system is equipped
Raise-and-fall guard rail, rendering minimum height of equipment when in storage status, easy to install
Leveling indictor is equipped
Parameters
Model
GTWY6-200
GTWY8-200
GTWY9-200
GTWY10-200
GTWY12-200A
GTWY12-200B
Safe working load ( kg )
300
200
200
200
200
200
Number of passengers
2
2
2
2
2
2
Max height of platform ( m )
6
8
9
10
12
12
Max working height ( m )
7.7
9.7
10.7
11.7
13.7
13.7
Overall length ( m )
1.38
1.38
1.58
1.58
1.62
1.68
Overall width ( m )
0.85
0.85
0.95
0.95
0.95
0.95
Overall height ( m )
2.00
2.00
2.00
2.00
2.25
2.00
Extended outrigger ( l x w )( m )
1.85 x 1.78
1.85 x 1.78
2.15 x 2.00
2.15 x 1.90
2.21 x 2.04
2.30 x 2.09
Size of platform ( m )
1.18 x 0.62
1.18 x 0.62
1.38 x 0.62
1.38 x 0.62
1.38 x 0.62
1.48 x 0.62
Lifting motor
AC ( VAC/kw )
220/1.1
220/1.1
220/1.1
220/1.1
220/1.1
220/1.1
DC ( option ) ( VDC/kw )
24/0.8
24/0.8
24/0.8
24/0.8
24/0.8
24/0.8
Accumulator ( V/Ah )
2x 12/80
2x 12/80
2x 12/100
2x 12/100
2x 12/100
2x 12/100
Charger ( V/A )
24/10
24/10
24/10
24/10
24/10
24/10
Wheel
Front wheel ( in )
6
6
6
6
6
6
Rear wheel ( in )
6
6
6
6
6
6
Overall weight ( kg )
380( AC )
480( AC )
548( AC )
610( AC )
650( AC )
650( AC )
425( DC )
525( DC )
593( DC )
665( DC )
700( DC )
700( DC )
Optional Configuration
Power supply: Battery DC with charger, suitable for outdoor operation.
Move mode:
Electric moving device is equipped in case of long distance travel
Could be built in carriage of truck
Trailer base could be provided in case of outdoor operation.
