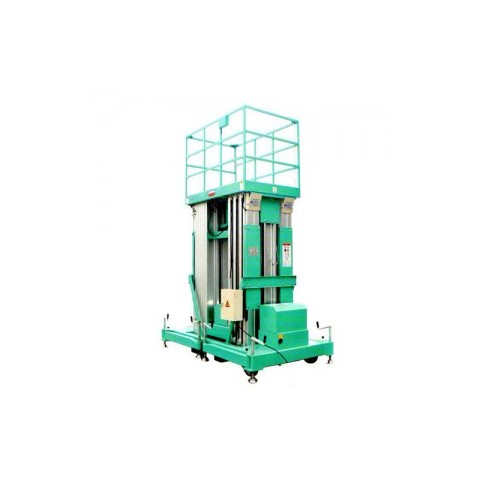

Multi-Masts Aerial Work Platform

• Application: 1 passenger
• Max height of platform: 16m, 18m, 20m, 22m for option
• Features: double decks, more working height.

Standard Configuration

• Power supply: single phase AC ( AC 220V );
• Move mode: manual; ( default )
• Driving unit: one unit hydraulic pump, small volume and less noise.
• Others:

1. Hand shank enables easy steering
2. Leveling of platform is guaranteed by adjusting outrigger with screws.
3. Eight-contacts safety support designed to stabilize the base
4. Electric limit switch shall cut off power when up limit is reached.
5. Ground / platform control modes are available, rendering possibility of one operator.
6. Stroke protection block is build in hydraulic cylinder for security.
7. Emergency lowering system is equipped
8. Raise-and-fall guard rail, rendering minimum height of equipment when in storage status, easy to install.
9. Leveling indictor is equipped

Parameters

Model	GTWY16-420	GTWY18-420	GTWY20-420	GTWY22-420
Safe working load ( kg )	150	150	100	100
Number of passengers	1	1	1	1
Max height of platform ( m )	16	18	20	22
Max working height ( m )	17.7	19.7	21.7	23.7
Overall length ( m )	2.25	2.25	2.50	3.00
Overall width ( m )	1.30	1.30	1.40	1.60
Overall height ( m )	2.18	2.42	2.62	2.82
Extended outrigger ( l x w )( m )	3.00 x 2.84	3.00 x 2.84	3.37 x 3.15	4.12 x 3.77
Size of platform ( m )	1.45 x 0.90	1.45 x 0.90	0.70 x 0.70	0.70 x 0.70
Lifting motor
AC ( VAC/kw )	220/2.2/1.1	220/2.2/1.1	220/2.2/1.1	220/2.2/1.1
DC ( option ) ( VDC/kw )	24/2.2	24/2.2	24/2.2	24/2.2
Accumulator ( V/Ah )	2 x 12/120	2 x 12/120	2 x 12/120	2 x 12/120
Charger ( V/A )	24/10	24/10	24/10	24/10
Wheel
Front wheel ( in )	8	8	8	8
Rear wheel ( in )	10	10	10	10
Overall weight ( kg )	1500	1600	1780	1880

Optional Configuration

• Move mode:
  Electric moving device is equipped in case of long distance travel

• Others:

1. Explosion-proof electrical system
2. Overload alarm
3. Outrigger limit switch
4. Tilt alarm
5. AC power to platform
6. Working alarm
7. Rubber dust stop
8. Explosion-proof valve for oil tube
