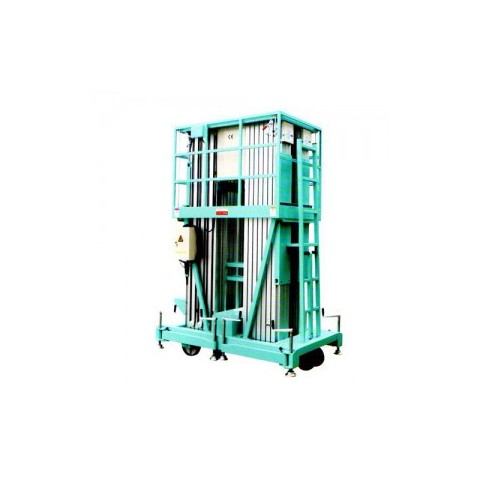

Quadruple Masts Aerial Work Platform

• Application: 1-2 passengers
• Max height of platform: 10m, 12m, 14m, 15m, 16m for option
• Features: able to carry two passenger, with more stability, more working height.

Standard Configuration

• Power supply: single phase AC ( AC 220V );
• Move mode: manual; ( default )
• Driving unit: one unit hydraulic pump, small volume and less noise.
• Others:

1. Hand shank enables easy steering
2. Leveling of platform is guaranteed by adjusting outrigger with screws.
3. Electric limit switch shall cut off power when up limit is reached.
4. Ground / platform control modes are available, rendering possibility of one operator.
5. Stroke protection block is build in hydraulic cylinder for security.
6. Emergency lowering system is equipped
7. Raise-and-fall guard rail, rendering minimum height of equipment when in storage status, easy to install.
8. Leveling indictor is equipped

Parameters

Model	GTWY10-400	GTWY12-400	GTWY14-400A	GTWY14-400B	GTWY16-400
Safe working load ( kg )	300	300	300	300	200
Number of passengers	2	2	2	2	2
Max height of platform ( m )	10	12	14	14	15.6
Max working height ( m )	11.7	13.7	15.7	15.7	17.3
Overall length ( m )	1.70	1.70	1.80	1.90	2.25
Overall width ( m )	1.10	1.10	1.10	1.10	1.30
Overall height ( m )	2.05	2.32	2.52	2.32	2.82
Extended outrigger ( l x w )( m )	2.19 x 2.19	2.19 x 2.19	2.34 x 2.27	2.49 x 2.36	2.72 x 2.79
Size of platform ( m )	1.41 x 0.88	1.41 x 0.88	1.41 x 0.88	1.41 x 0.88	1.41 x 0.88
Lifting motor
AC ( VAC/kw )	220/2.2	220/2.2	220/2.2	220/2.2	220/2.2
DC ( option ) ( VDC/kw )	24/2.2	24/2.2	24/2.2	24/2.2	24/2.2
Accumulator ( V/Ah )	2 x 12/120	2 x 12/120	2 x 12/120	2 x 12/120	2 x 12/120
Charger ( V/A )	24/10	24/10	24/10	24/10	24/10
Wheel
Front wheel ( in )	8	8	8	8	8
Rear wheel ( in )	10	10	10	10	10
Overall weight ( kg )	1100( AC )	1150( AC )	1200( AC )	1200( AC )	1450( AC )
	1165( DC )	1220( DC )	1265( DC )	1265( DC )	1520( DC )

Optional Configuration

• Power supply: Battery DC with charger, suitable for outdoor operation.
• Move mode:
  Electric moving device is equipped in case of long distance travel

• Others:

1. Explosion-proof electrical system
2. Overload alarm
3. Outrigger limit switch
4. Tilt alarm
5. AC power to platform
6. Working alarm
7. Rubber dust stop
8. Explosion-proof valve for oil tube
