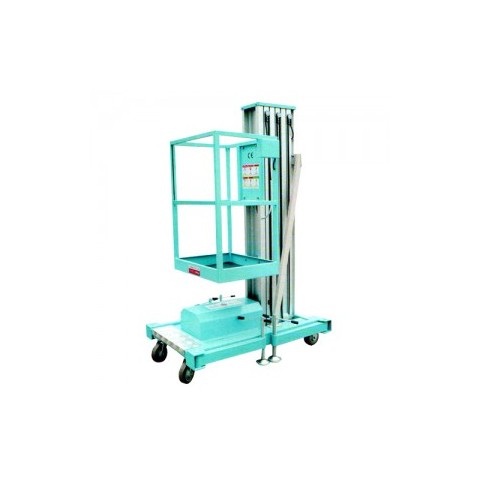

Max height of platform: 4m, 6m, 8m, 9m, 10m for option
Features: small footprint, less weight, easily moved, able to access to limited passageway. The most ideal equipment for aerial work to replace ladder or rigger, with high efficiency and more security.
Standard Configuration
Power supply: single phase AC ( AC 220V );
Move mode: manual; ( default )
Driving unit: one unit hydraulic pump, small volume and less noise.
Others:
Leveling of platform is guaranteed by adjusting outrigger with screws
Electric limit switch shall cut off power when up limit is reached.
Ground / platform control modes are available, rendering possibility of one operator.
Stroke protection block is build in hydraulic cylinder for security.
Emergency lowering system is equipped
Antiskid staircase is provided
Leveling indicator is equipped
Parameters
Model
GTWY4-100
GTWY6-100
GTWY8-100
GTWY9-100
GTWY10-100
Safe working load ( kg )
150
150
125
125
125
Number of passengers
1
1
1
1
1
Max height of platform ( m )
4
6
8
9
10
Max working height ( m )
5.7
7.7
9.7
10.7
11.7
Overall length ( m )
1.05
1.32
1.32
1.38
1.42
Overall width ( m )
0.75
0.80
0.80
0.85
0.85
Overall height ( m )
1.65
1.65
1.98
1.98
2.10
Extended outrigger ( l x w )( m )
1.76 x 1.64
1.76 x 1.63
1.76 x 1.75
1.98 x 1.83
1.91 x 1.81
Size of platform ( m )
0.60 x 0.55
0.60 x 0.55
0.60 x 0.55
0.60 x 0.55
0.60 x 0.55
Lifting motor
AC ( VAC/kw )
220/0.75
220/0.75
220/0.75
220/0.75
220/0.75
DC ( option ) ( VDC/kw )
24/0.8
24/0.8
24/0.8
24/0.8
24/0.8
Accumulator ( V/Ah )
2x 12/80
2x 12/80
2x 12/80
2x 12/80
2x 12/80
Charger ( V/A )
24/10
24/10
24/10
24/10
24/10
Wheel
Front wheel ( in )
6
6
6
6
6
Rear wheel ( in )
6
6
6
6
6
Overall weight ( kg )
185( AC )
260( AC )
300( AC)
326( AC)
350( AC)
230( DC )
305( DC)
345( DC)
372( DC)
395( DC)
Optional Configuration
Power supply: Battery DC with charger, suitable for outdoor operation.
Move mode:
Electric moving device is equipped in case of long distance travel
Could be built in carriage of truck
Trailer base could be provided in case of outdoor operation.
